The DPX-M Liner Hanger is a single-cone, single-kava mechanical hanger with a "J" -shaped slot machined into the body, which is easy to operate by lifting it up and down.
Features
1. Cone design milling slot, greatly increased the hanger area of over-flow.
2. J-shaped groove design is not prone to sit in advance.
Rely on the spring and the upper casing friction to achieve sitting.
4. Through the transfer to achieve sitting.
Specifications
A: φ244.5 mm × φ177.8 mm (9 5/8 "x7")
B: φ177.8 mm × φ127 mm (7 "× 5")

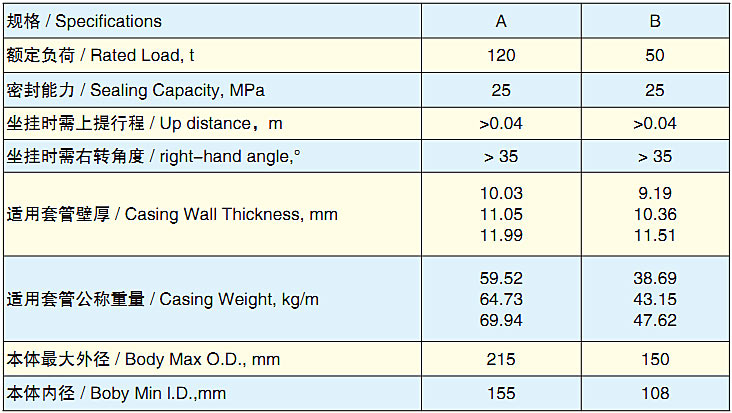

Technical Parameters
