Consists of a sealed housing and a sealed core for sealing the center tube. Under the sealed casing with the hanger body, there is a left-handed trapezoidal thread connected to the feeding tool to feed the tailpipe. After hanging down the hook, into the tool and tail pipe detachment.
Features
1. The sealed core can be fed into the tool to raise the wellhead, saving the time to drill the sealed core.
2. Adopt "W" shape multi-group seal, with two-way sealing function; sealing function is greater than 25MPa.
3. Body with a righting block, which is conducive to supporting the use of hangers.
4. Can be used with DPX-A, DPX-B, DPX-D, DPX-H, DPX-M hanger.
Specifications
A: φ177.8mm / φ139.7mm
B: φ127mm / φ114.3mm

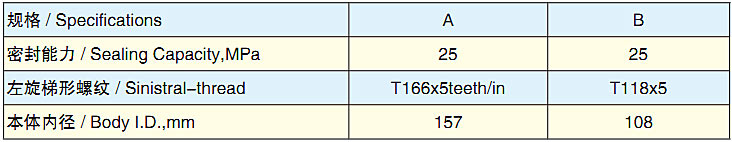

Technical Parameters
